2 cylinder diesel engine single cylinder diesel engine engines diesel

Name: 2 cylinder diesel engine single cylinder diesel engine engines diesel
Brand: Heavy Machines & parts
SKU: 194960813013782_103895908
Price: 480000.0 NOK
Availability: InStock

480.000,00 NOK

~~0,00 NOK~~ 480.000,00 NOK

Sale Sold out

Tax included.

Usage Automobile

Fuel Diesel

Model Number 20HP 18HP 10HP 8HP 15HP 12HP

Product variants

Quantity

Product Description

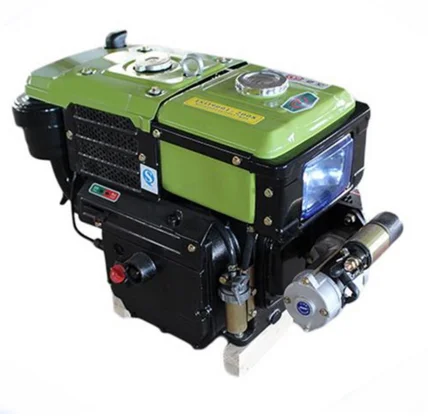

Our diesel engine is supplied with various horsepower(8HP,10HP,12HP,15HP,18HP....).

Our products are sold all over the world.We Sell more than 10000 sets every year!!!

Model	180	ZR192	ZR195
Engine Type	Single cylinder,horizontal,4 stroke	Single cylinder,horizontal,4 stroke	Single cylinder,horizontal,4 stroke
Combustion System	Swirl chamber/direct injection	Swirl chamber/direct injection	Direct injection
Bore*Stroke(mm)	80*80	92*95	95*95
Total Displacement(L)	0.402	0.598	0.67
Rated Output(kw)	5.15	7.7	8.8
Max.Output(kw/rpm)	5.67	8.47	9.68
Rated Speed(r/min)	2200	2200	2200
Cooling System Consumption	Evaporative/Condensing	Evaporative/Condensing	Condensing
Lubrication Method	Pressure splash spray	Pressure splash spray	Pressure splash spray
Starting Method	Hand start/Electric start	Hand start/Electric start	Hand start/Electric start
Engine Net weight(kg)	72	102	115
Chassis Type	Traction&Driving	Traction&Driving	Traction&Driving
Rated Traction	1700N	1700N	1700N
Min Ground Distance	210mm	210mm	210mm
Type of clutch	Sing/double friction disc of constant conjunction	Sing/double friction disc of constant conjunction	Sing/double friction disc of constant conjunction
Tread	640-680mm	640-680mm	640-680mm
Chassis Structure Weight	150kg	150kg	150kg
